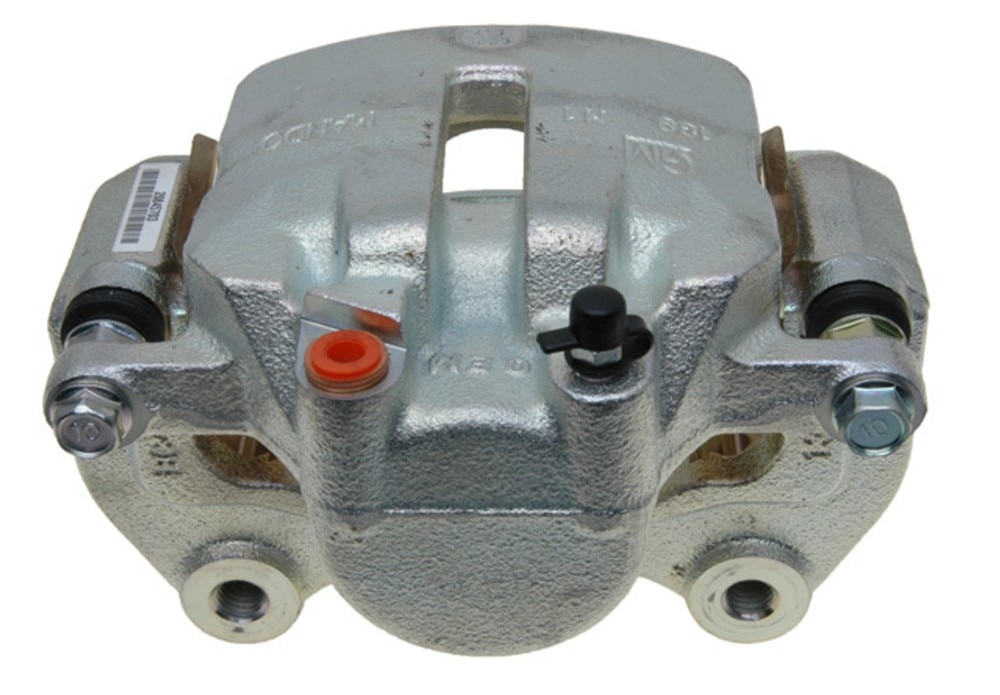

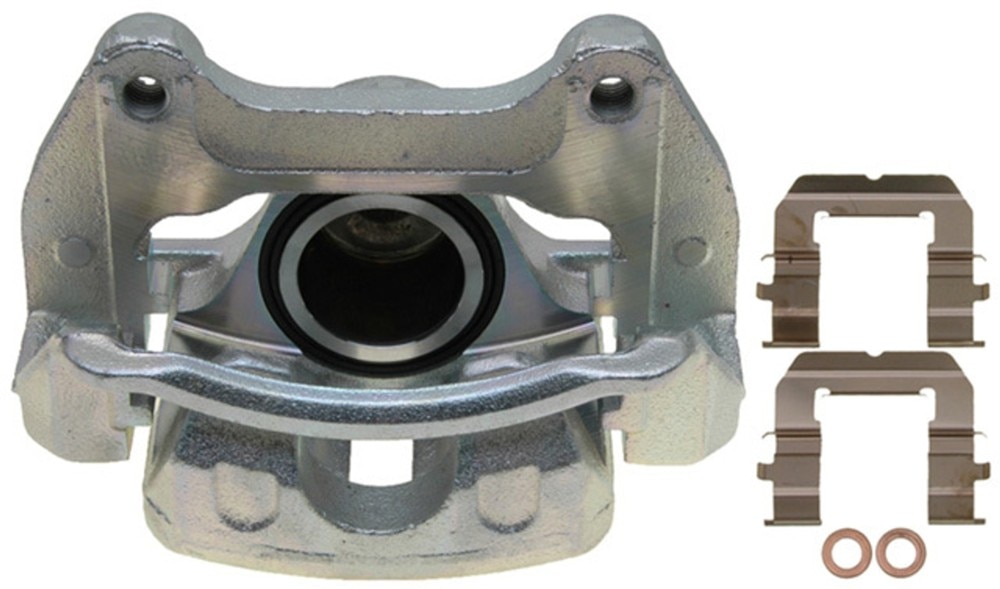

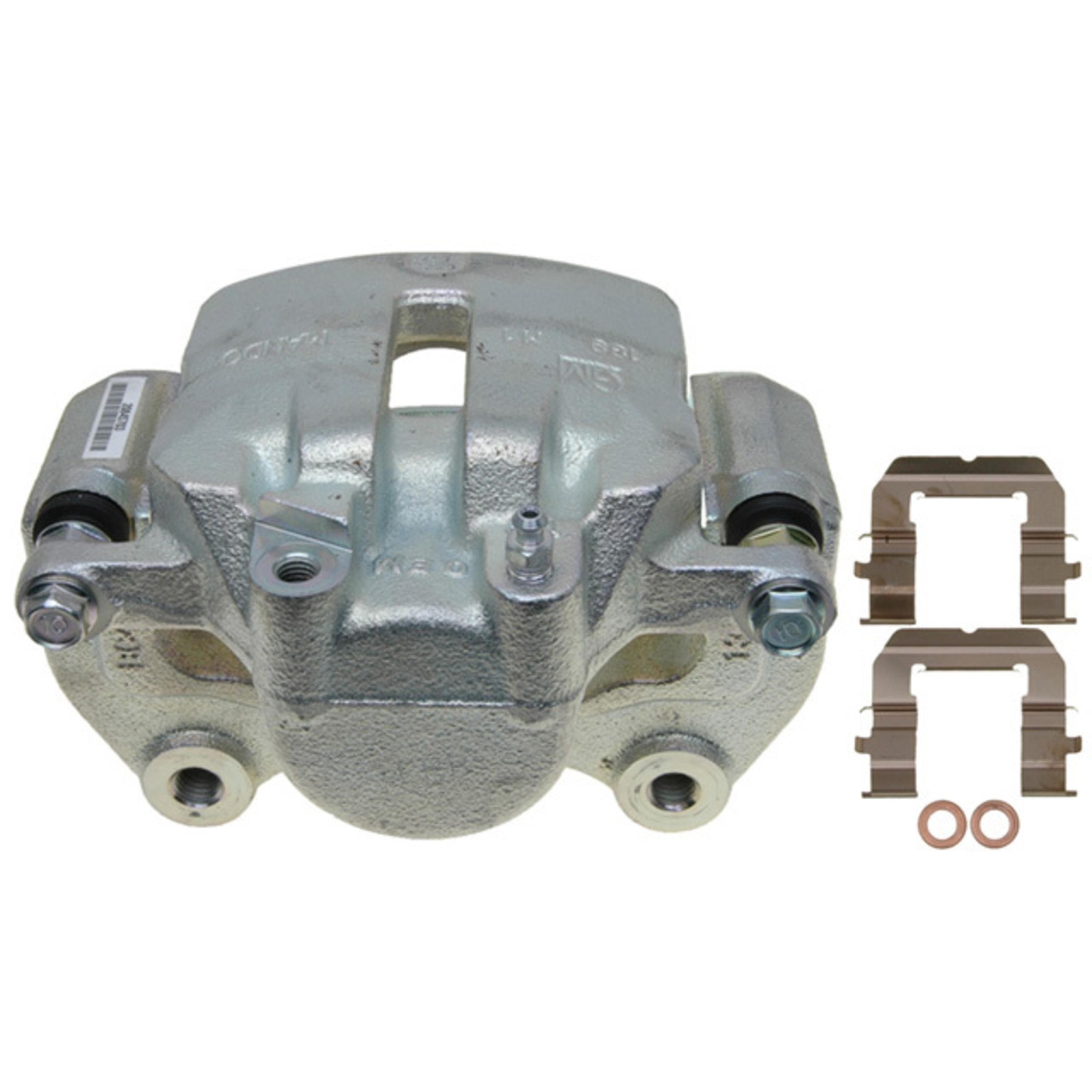

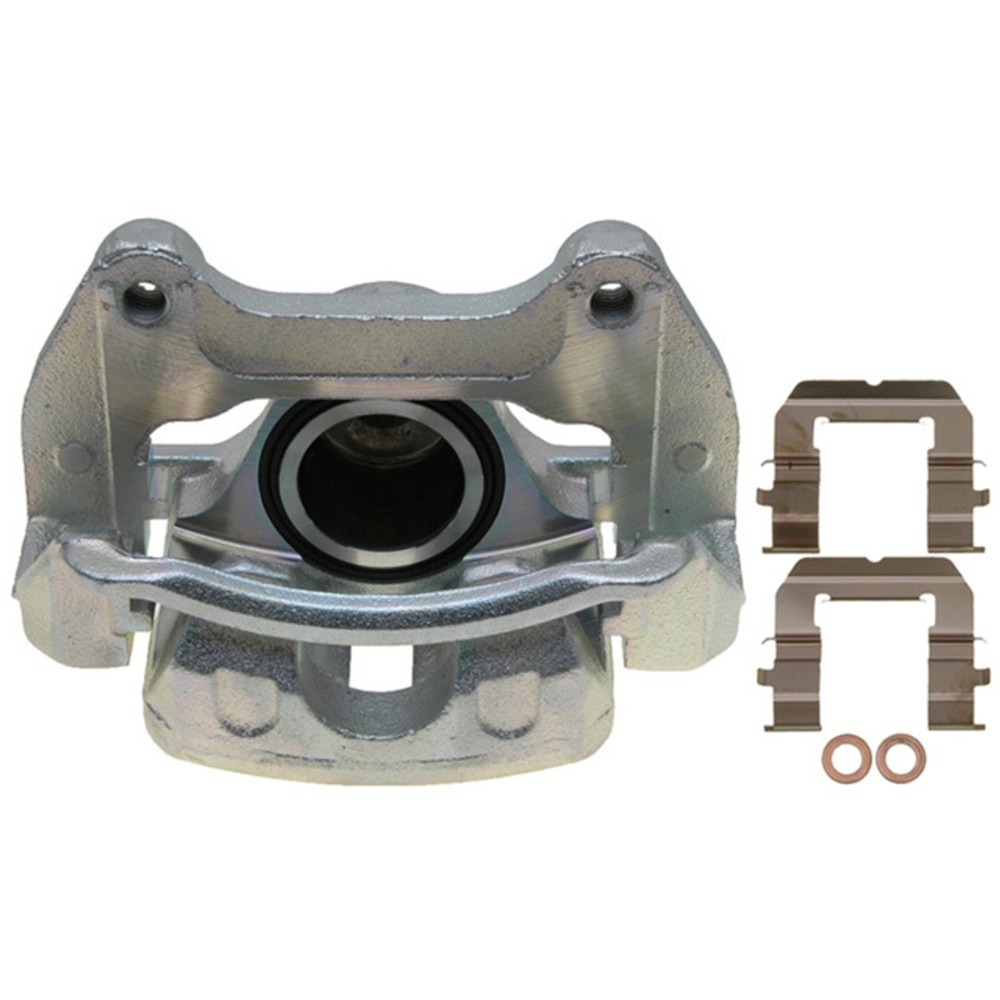

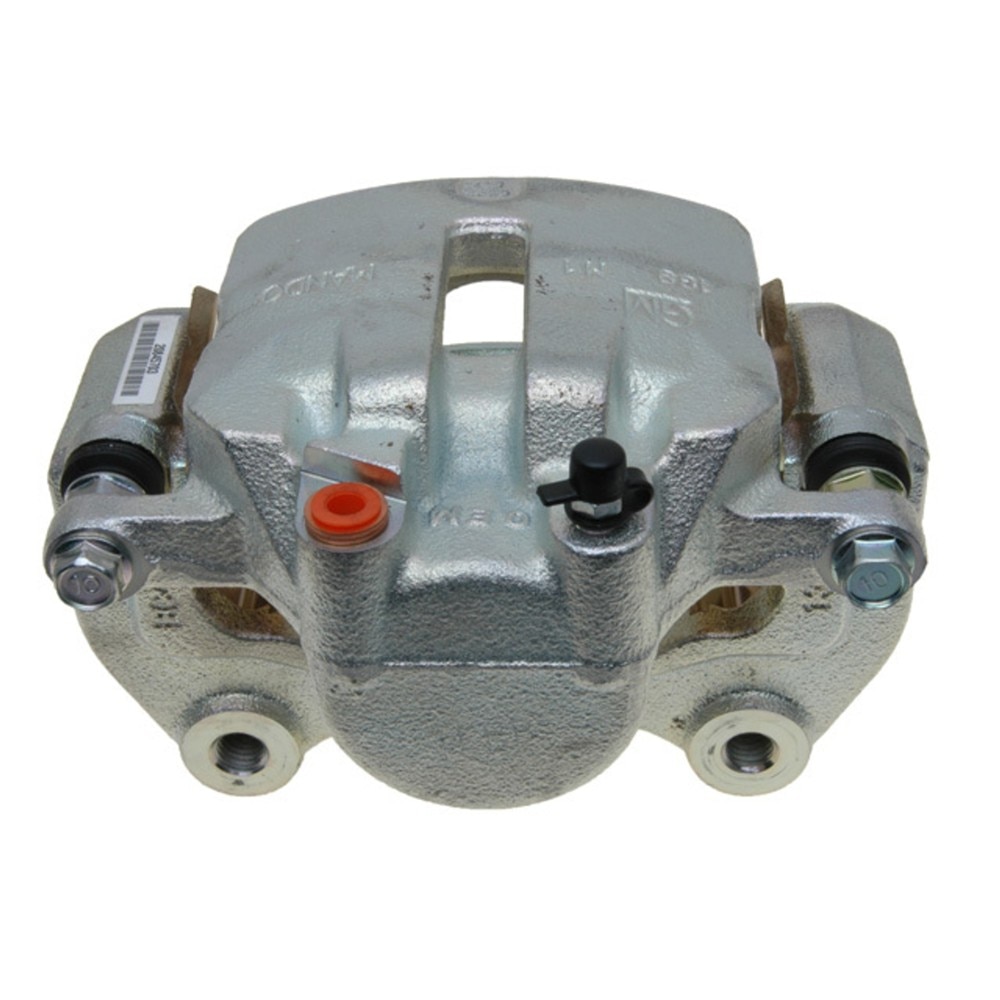

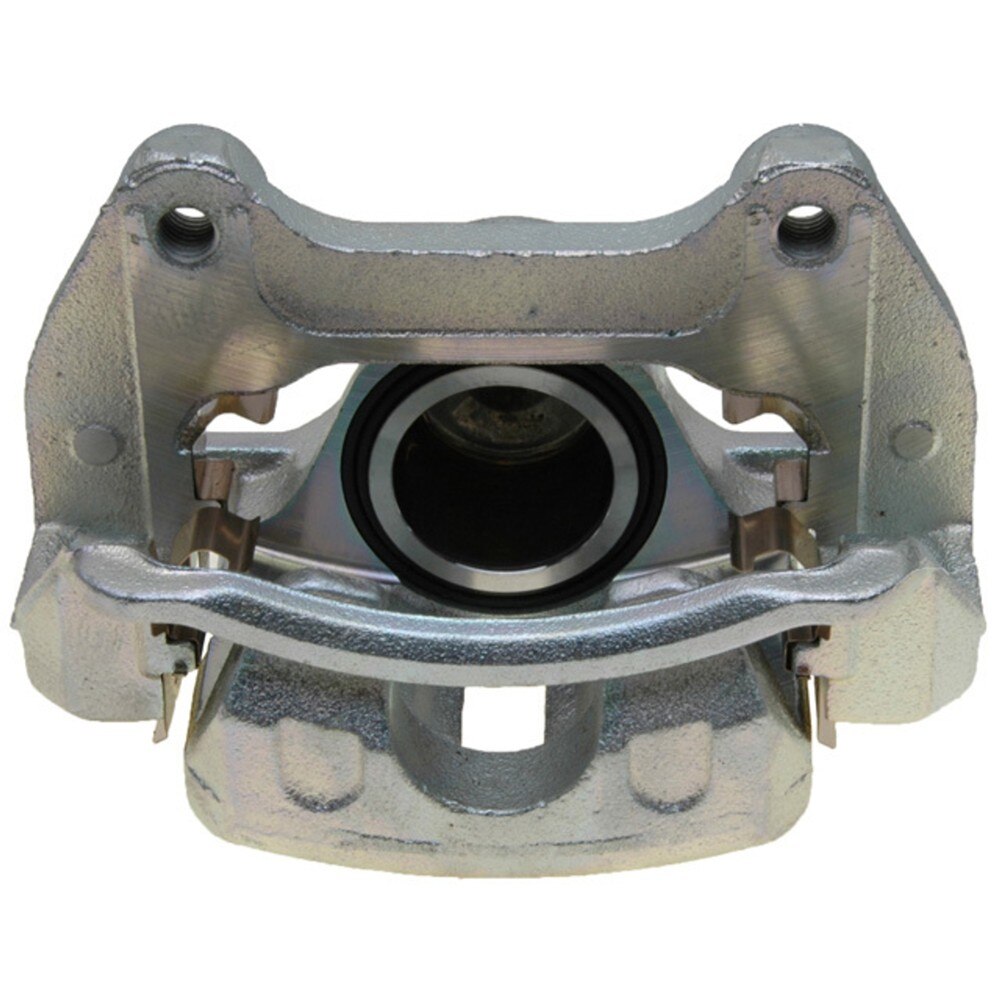

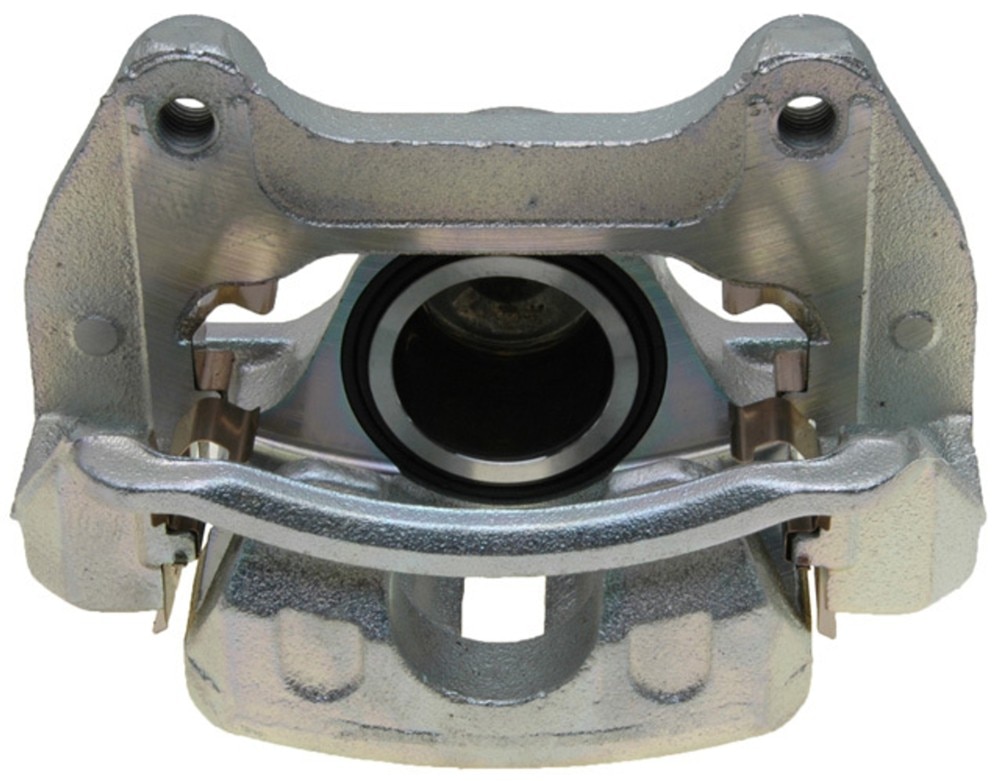

ACDelco Gold Front Passenger Side Disc Brake Caliper Assembly (Friction Ready Non-Coated), Remanufactured

About this product

ACDelco Gold (Professional) Remanufactured Friction Ready Disc Brake Calipers are the high quality alternative to Original Equipment (OE) parts. They use both aluminum and iron castings. These loaded calipers contain Ethylene Propylene (EPDM) rubber components to provide superior resistance to heat, corrosion, and leakage. ACDelco Professional Remanufactured Friction Ready Disc Brake Calipers are developed without attached brake pads, allowing customization for the application at hand. Bleeder screws, copper sealing washers, hardware, and mounting brackets are all included for easy installation. Remanufacturing disc brake calipers is an automotive industry practice that involves disassembly of existing units, and replacing components that are most prone to wear with new components. Damaged and obsolete parts are replaced and are end of line tested to ensure they perform to ACDelco specifications. In addition, remanufacturing returns components back into service rather than processing as scrap or simply disposing of them.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Pressure tested to ensure safe and confident braking
Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Developed without attached brake pads for customization

Product Specifications

Caliper TypeFloating

Pad Wear Sensor IncludedNo

Caliper Slides IncludedYes

Mounting Hardware IncludedNo

Pads IncludedNo

Bracket IncludedYes

Inlet Fitting TypeFemale

Piston Quantity1

Caliper ColorSilver

Weight15lb

Core Charge45.00

ClassificationGold

Mounting Hole Diameter14in

Mounting Bracket IncludedYes

Caliper Casting MaterialCast Iron

Anti-Rattle Spring IncludedNo

Caliper TypeFloating

Caliper Slides IncludedYes

Pads IncludedNo

Inlet Fitting TypeFemale

Caliper ColorSilver

Core Charge45.00

Mounting Hole Diameter14in

Caliper Casting MaterialCast Iron

Pad Wear Sensor IncludedNo

Mounting Hardware IncludedNo

Bracket IncludedYes

Piston Quantity1

Weight15lb

ClassificationGold

Mounting Bracket IncludedYes

Anti-Rattle Spring IncludedNo

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

The following should be conducted by a qualified technician:

Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Check the thickness of your brake pads.
Inspection of the brake hoses for brittleness or cracking.
Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
Inspection of wheel bearings and grease seals.
Parking brake adjustments (as needed).

Troubleshooting Tips:

Vehicle pulls to the left or right when brakes are applied.
Brake pedal pulsation (not to be confused with normal ABS operation).

Certain automotive parts can be recycled and remanufactured for future use. These parts have a "core charge" that is used as a deposit on the portion of the part that can be reused. The reason for this charge is to encourage the return of your old part. When the recyclable component from your old part is returned to us, the charge is refunded to you.

Model	Body Style	Trim	Year(s)
ELR			2014, 2015, 2016

About this product

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Pressure tested to ensure safe and confident braking
Cast iron and aluminum specifications; no extra stress on the brake boosting mounting
Developed without attached brake pads for customization

Product Specifications

Caliper TypeFloating

Pad Wear Sensor IncludedNo

Caliper Slides IncludedYes

Mounting Hardware IncludedNo

Pads IncludedNo

Bracket IncludedYes

Inlet Fitting TypeFemale

Piston Quantity1

Caliper ColorSilver

Weight15lb

Core Charge45.00

ClassificationGold

Mounting Hole Diameter14in

Mounting Bracket IncludedYes

Caliper Casting MaterialCast Iron

Anti-Rattle Spring IncludedNo

Caliper TypeFloating

Caliper Slides IncludedYes

Pads IncludedNo

Inlet Fitting TypeFemale

Caliper ColorSilver

Core Charge45.00

Mounting Hole Diameter14in

Caliper Casting MaterialCast Iron

Pad Wear Sensor IncludedNo

Mounting Hardware IncludedNo

Bracket IncludedYes

Piston Quantity1

Weight15lb

ClassificationGold

Mounting Bracket IncludedYes

Anti-Rattle Spring IncludedNo

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

The following should be conducted by a qualified technician:

Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations.
Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required.
Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary).
Check the thickness of your brake pads.
Inspection of the brake hoses for brittleness or cracking.
Inspection of brake lining and pads for wear or contamination by brake fluid or grease.
Inspection of wheel bearings and grease seals.
Parking brake adjustments (as needed).

Troubleshooting Tips:

Vehicle pulls to the left or right when brakes are applied.
Brake pedal pulsation (not to be confused with normal ABS operation).

Model	Body Style	Trim	Year(s)
ELR			2014, 2015, 2016

Frequently Asked Questions

No, but it is a good idea to inspect them for wear-out, cracking, leaking etc.

Yes, ACDelco also offers GM OE disc brake calipers.

No, but it is a good idea to inspect them at every tire rotation.
